DJI Ronin 4D 8K

Announced October 20, 2021

Buy New on B&HBuy Used on KEH.com

PetaPixel may earn a commission if you buy through one of our links.

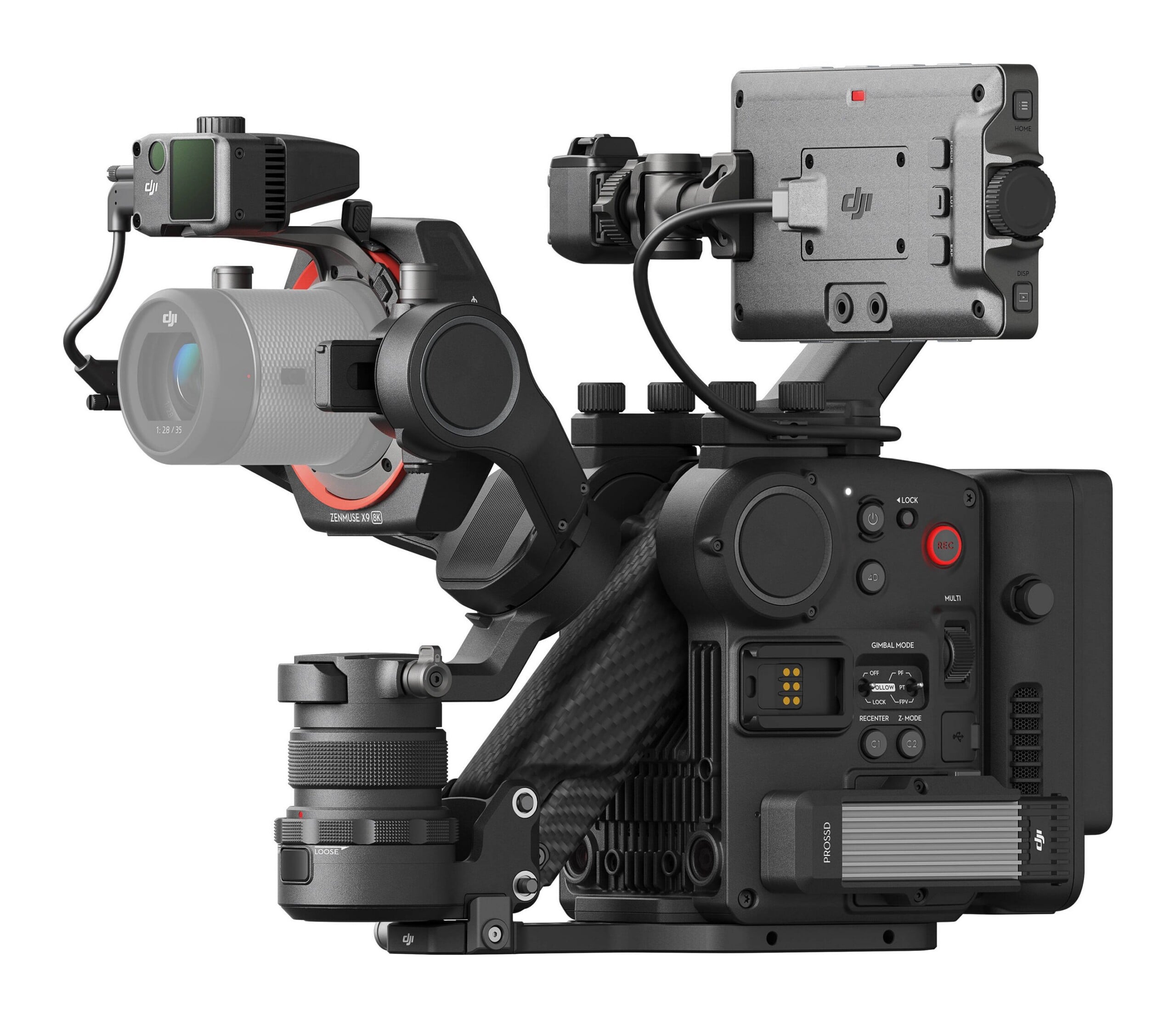

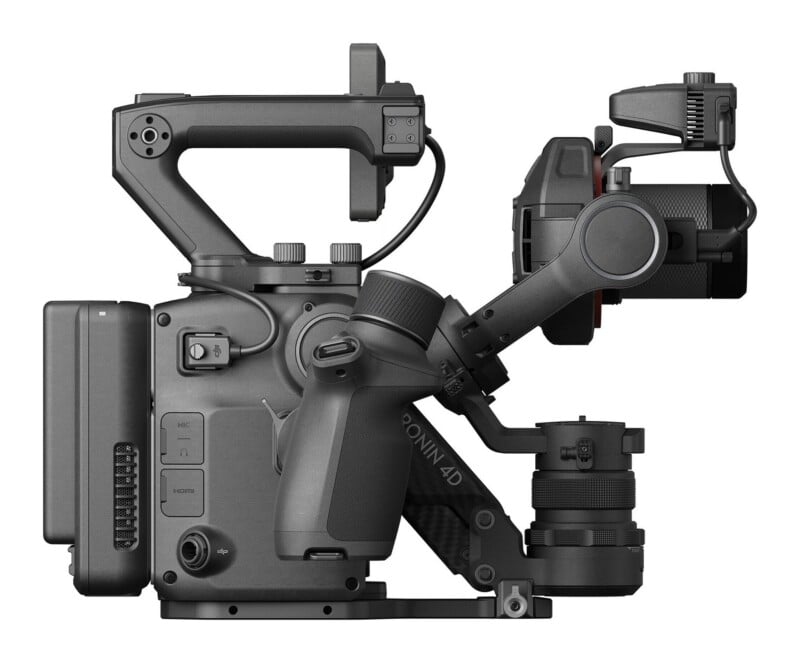

A DJI Ronin 4D cinema camera system with a Zenmuse X9 8K gimbal camera, lens, side handles, and a top-mounted monitor.
18
86

PixelMeter The PixelMeter is our 1–100 aggregate of reviewer scores from trusted publications and creators. Weighted by source tier — not a raw average, and not PetaPixel’s own review.

Reviewer Consensus

Strong

The DJI Ronin 4D 8K functions as a versatile all-in-one cinema system that produces gorgeous, high-quality footage with class-leading gimbal stabilization. Although the camera offers a seamless shooting experience across various environments, the high cost and reliance on proprietary storage or specific recording formats may present challenges for some users.

Weighted from 4 reviewer scores

Early scores

Pros

  • Exceptional image quality and dynamic range
  • Comprehensive all-in-one cinema feature set including LiDAR focusing and ND filters
  • Advanced integrated stabilization and gimbal performance
  • High-resolution recording options and flexible frame rates
  • Ergonomic design and build quality

Cons

  • Significant physical weight and size
  • Performance limitations including rolling shutter and battery issues
  • Restrictive recording media and format limitations
  • High cost for the total system
  • Lack of weather resistance and gimbal interference with heavy lenses
  • Launch price $11,499 (USD)
  • Sensor 44.7MP Full-Frame CMOS
  • Video 6K 60p UHD 120p
  • Stabilization In-body IS
Buy New on B&HBuy Used on KEH.com

PetaPixel may earn a commission if you buy through one of our links.

What the Reviewers Say

All 4 expert reviews, weighted into the PixelMeter score.

Specifications

General

Announcement date October 20, 2021
Launch MSRP $11,499
Medium Digital
Lens mount DJI DX
Body type Cinema

Sensor & Processing

Effective resolution 44.7MP
Sensor format Full-Frame
Sensor technology CMOS
Sensor dimensions 35mm
Color filter array Bayer
Image processor CineCore 3.0
Native ISO range Dual Base: 320 / 1,600
Native: 200 to 6,400
Advertised dynamic range 14stops

Autofocus

Autofocus modes Automatic, Manual Focus
Subject recognition Human face, Human body

Shutter & Exposure

Shutter types Electronic Rolling Shutter
Shutter speed range 1/8000 to 1/24 sec
Maximum electronic shutter speed 1/8000s

Display & Viewfinder

Rear LCD size 5.5-inch
Rear LCD resolution 1.08M dots
Rear LCD articulation Tilting

Video

Internal Recording
  • 6048 x 4032
  • 3840 x 2160 up to 120 fps
External Recording
  • via USB
  • 3840 x 2160 up to 60.00 fps
  • 2048 x 1080 up to 60.00 fps
Max video resolution 6K
Max frame rate at max resolution 60p
Max frame rate at UHD 120p
Codecs Apple ProRes RAW HQ, Apple ProRes RAW, Apple ProRes 4444 XQ, Apple ProRes 422 HQ, Apple ProRes 422 LT, H.264
Bit depth and chroma 10-bit 4:2:0
Gamma / log profiles HDR-HLG, Rec709
Active cooling Yes
Audio recording 2-channel
Built-in ND filter Mechanical Filter Wheel with Clear, 1-Stop (1/2), 2-Stop (1/4), 3-Stop (1/8), 4-Stop (1/16), 5-Stop (1/32), 6-Stop (1/64), 7-Stop (1/128), 8-Stop (1/256), and 9-Stop (1/512) ND Filters

Storage

Card slots 1
Card types 1x CFexpress Type B (Supports Optional DJI ProSSD Module)

Stabilization

In-body stabilization (IBIS) Yes

Connectivity

USB 1x Barrel (12 to 30VDC) Input
HDMI output None
Wi-Fi Yes
Bluetooth Bluetooth 5.0
3.5mm mic input Yes
3.5mm headphone output Yes
Flash sync terminal No
Hot shoe 2x Cold Shoe

Power

Battery DJI TB50
CIPA video recording time Approx. 150 minutes
USB power delivery Yes

Body

Weight (body only) 1450g (3 lb 3.1 oz)
Dimensions 309 x 290 x 277 mm (12.17 x 11.42 x 10.91 in) / 235 x 160 x 115 mm (9.25 x 6.30 x 4.53 in)
Weight (with battery and recording media) 4670g (10 lb 4.7 oz)
Weather sealing None
Chassis material Aluminum, Carbon Fiber, Magnesium Alloy
Tripod thread 1/4"-20 and 3/8"-16
Accessory mounting threads 2x 1/4"-20 ; 1x 3/8"-16
